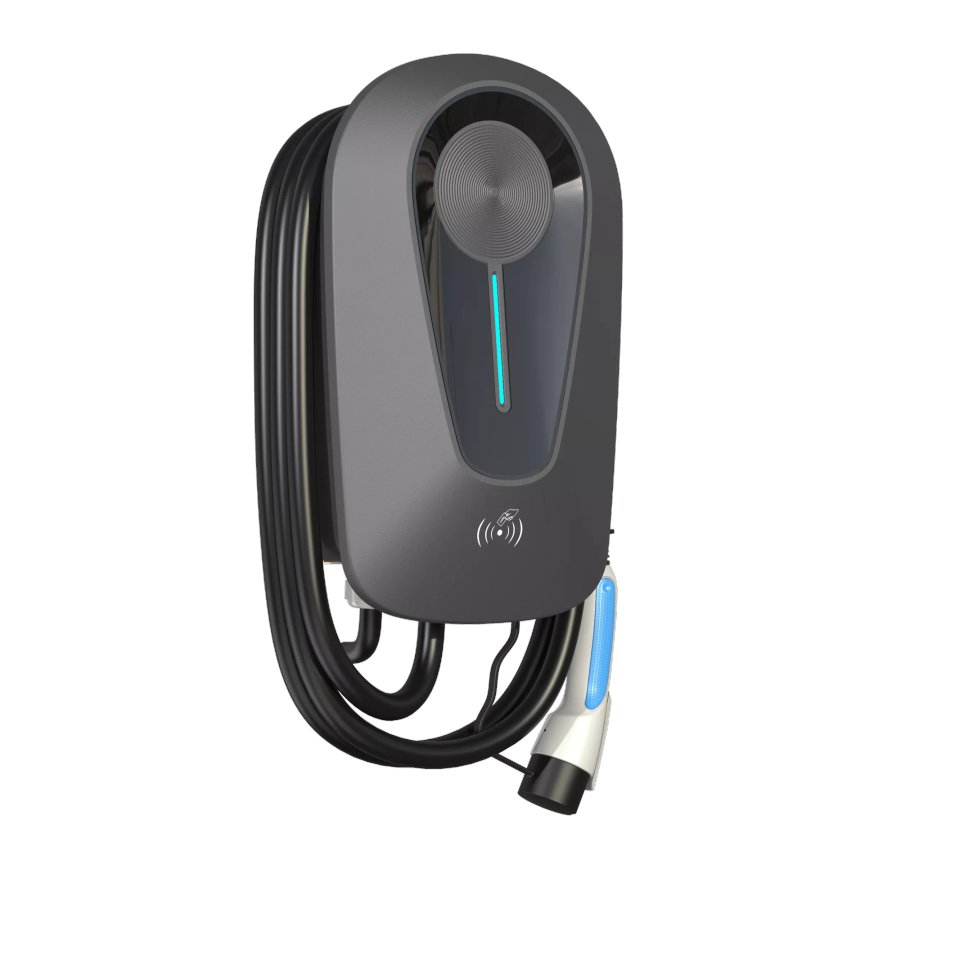

Wallbox 22KW T series

  • Power: 22kW
  • Current: 32A
  • Voltage: Three phase, 400V AC
  • Frequency: 50/60Hz
  • Level of Measurement Accuracy: 1.0
  • Operating Temperature: -40℃~+55℃
  • IP Rating: IP66
  • Altitude: ≤ 2000m
  • Type 2 Charger Connector

Satisfication Guranteed Service

  • Check Mark Fast Shipping
  • Check Mark Quick Response
  • Check Mark Warranty Assured
Category:

Description

  • Power: 22kW
  • Current: 32A
  • Voltage: Three phase, 400V AC
  • Frequency: 50/60Hz
  • Level of Measurement Accuracy: 1.0
  • Operating Temperature: -40℃~+55℃
  • Storage Temperature: -40℃~+85℃
  • Relative Humidity: 5-95%, without condensation
  • IP Rating: IP66
  • Residual Current Protection Rated Operating Current: 30mA, +DC 6mA
  • Residual Current Protection Rated Action Time: ≤0.1 s
  • Connector Power Line Contact: AC400V, 35A
  • Connector Operating Life: ≥ 10000 times
  • Altitude: ≤ 2000m
  • Type 2 Charger Connector
  • Dimensions: 290*473*160mm
  • Net Weight: 8.2kg
